1064nm Jewellery Laser Head for TTS

Twotrees T20 1064nm Fiber Infrared Laser Module for TTS – High-Power Metal Engraver for Jewelry, Rings, Bracelets

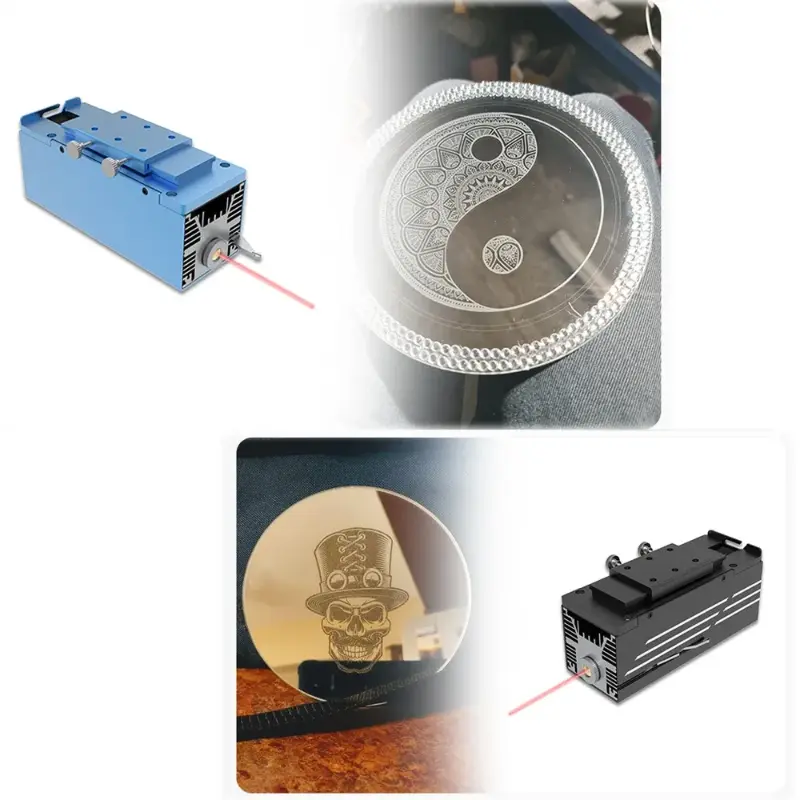

Engrave on Most Metals
Unlike standard 455nm laser modules, the xTool 1064nm infrared laser is designed for metal engraving and jewelcrafting, working on materials like gold, silver, platinum, copper, aluminum, zinc, titanium, iron, stainless steel, and alloys.

Enhanced Performance on Plastic and Acrylic
With fewer burn marks and sharper images, the 1064nm infrared laser is ideal for engraving leather, opaque plastic, black acrylic, painted glass, ceramics, and circuit boards.

Ultra-fast Processing Speed
Featuring a 160mm/s speed and 0.03×0.03mm compressed spot for detailed engraving.

Perfect for Jewelry Businesses
Personalize and engrave metal jewelry such as necklaces, bracelets, and rings, making each piece unique.

• Precision Metal Engraving: Ideal for jewelry and metals like gold, silver, and stainless steel with 1064nm infrared laser technology.
• Versatile Material Compatibility: Excels in engraving plastics, leather, acrylic, glass, ceramics, and circuit boards with fewer burn marks.
• High-Speed Processing: Engraves at 160mm/s, delivering fast, detailed work for professionals and hobbyists.

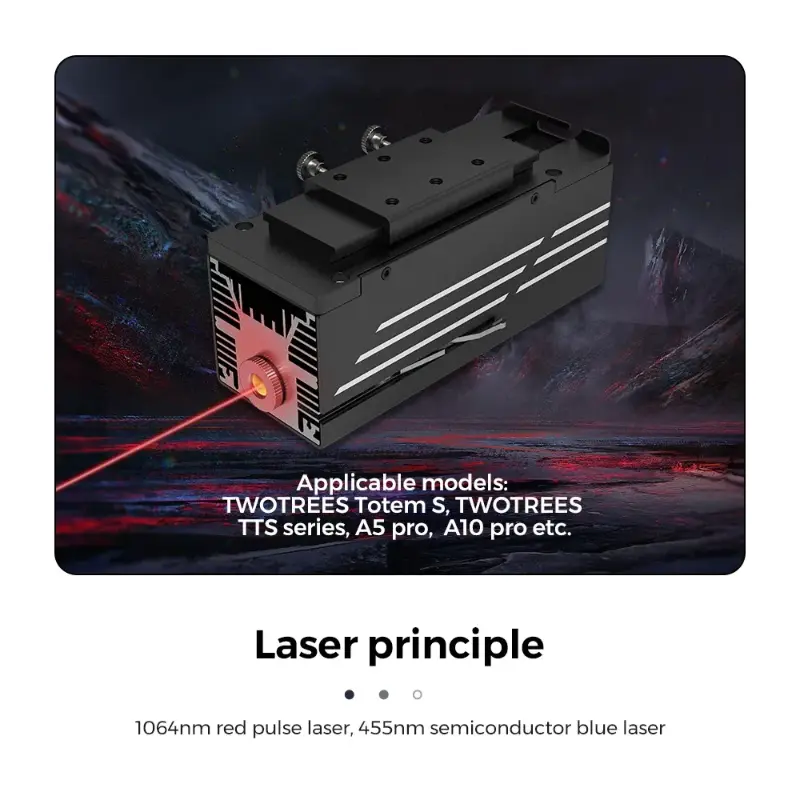

• Compact & Lightweight Design: Easily integrates into 3D printer setups like TWOTREES TTS, Totem 5.5S, ATOMSTACK A5/A10 Pro.
• Plug-and-Play Convenience: Simple setup for seamless workflow and portable engraving capabilities.

Specifications:

• Laser Electric Power: 84W
• Laser Optical Power: 2W
• Laser Spot: 0.03mm x 0.03mm
• Wavelength: 1064nm
• Peak Power: 15KW
• Voltage: 12V
• Product Size: 68mm x 54mm x 142mm
• Package Size: 200mm x 200mm x 80mm
• Weight: 520g
• Colors: Black, Blue
